4603-08-08
Hydraulic Adapters · Elbow, 45°, Barb-Male, Barb-Orb

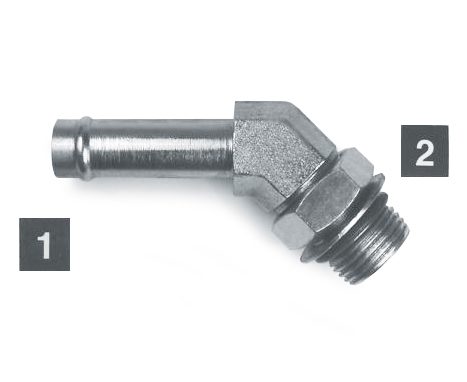

Elbow, 45°, Barb-Male, Barb-Orb 3/4-16 1/2 Bead
| Part number | 4603-08-08 |
| Category | Hydraulic Adapters |
| Type | Elbow, 45°, Barb-Male, Barb-Orb |

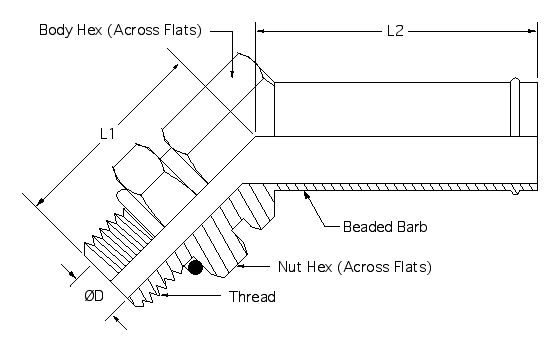

| L1 | 1.30 |
| L2 | 1.82 |
| D | 0.391 |
| Nut Hex | 3/4 |
| Body Hex | 3/4 |
| Thread | 3/4-16 |
| Beaded Barb | 1/2 |
Volume pricing — unit price by quantity
| Quantity | Unit price |
|---|---|
| 1 | $8.27 |
| 2+ | $5.77 |
| 3+ | $4.88 |
| 4+ | $4.46 |
| 5+ | $3.24 |
| 10+ | $2.52 |
| 25+ | $1.95 |
| 50+ | $1.50 |
| 100+ | $1.12 |
| 250+ | $0.98 |
USD list price. Volume & dealer pricing confirmed on quote.
