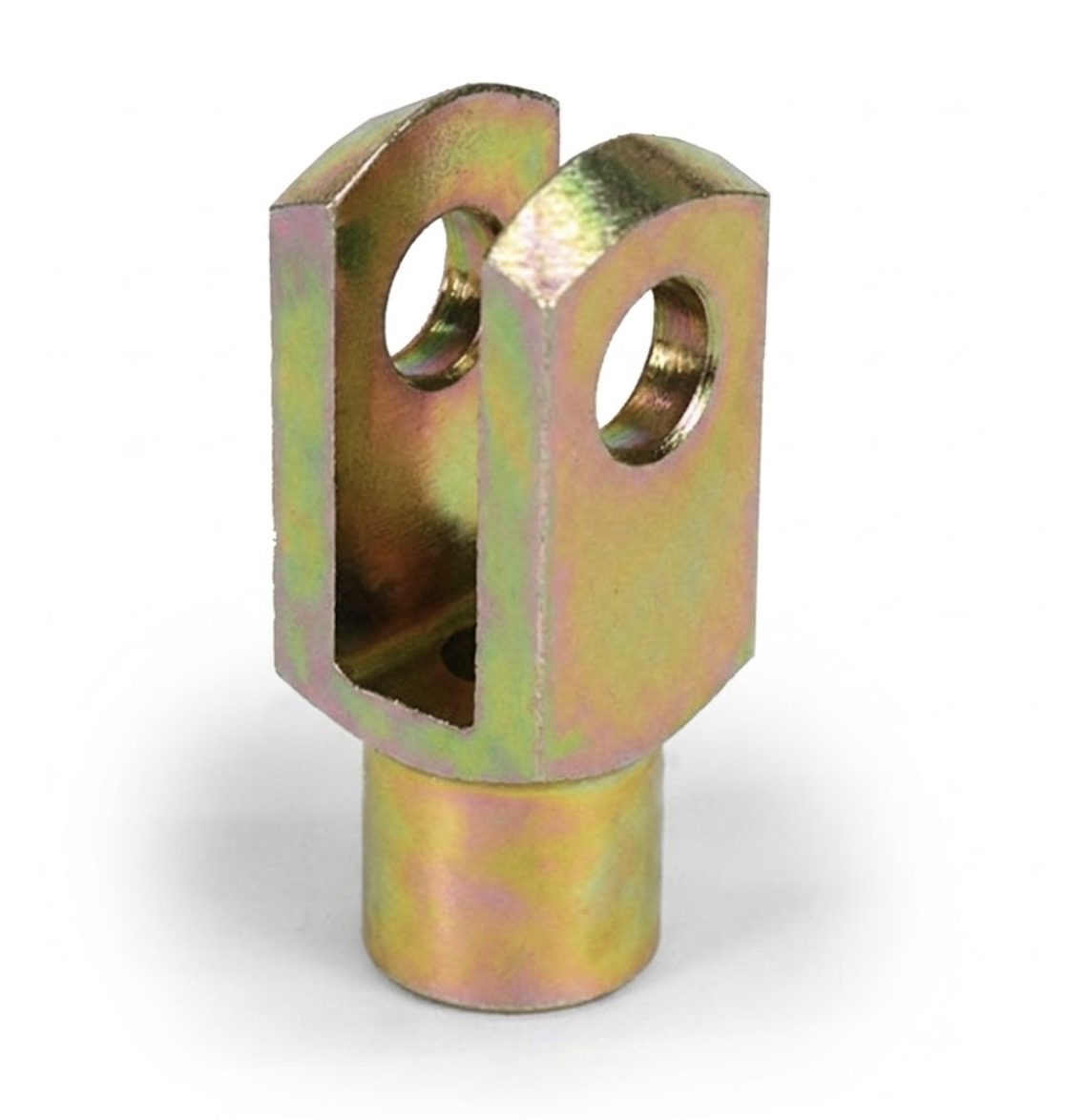

BTC-375L
Clevis and Yoke Ends · Female
Female 3/8-24 RH 0.375 Pin Holes 3/8 Long Body Zinc Yellow Plating Turned Construction
| Part number | BTC-375L |
| Category | Clevis and Yoke Ends |
| Type | Female |
| Threads | 3/8-24 RH |

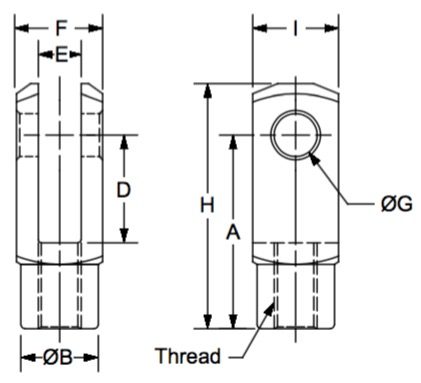

| A | 2.325 |
| B | 0.708 |
| D | 1.575 |
| E | 0.3750 |
| F | 0.750 |
| G | 0.375 |
| H | 2.834 |
| I | 0.750 |
Volume pricing — unit price by quantity
| Quantity | Unit price |
|---|
| 1 | $15.12 |
| 2+ | $9.54 |
| 3+ | $8.02 |
| 4+ | $7.60 |
| 5+ | $7.35 |
| 10+ | $5.31 |
| 20+ | $4.63 |
| 40+ | $3.48 |
| 80+ | $3.07 |
| 160+ | $2.87 |
| 320+ | $2.43 |
| 480+ | $2.41 |
| 640+ | $2.07 |
USD list price. Volume & dealer pricing confirmed on quote.
Product overview
Application: inch clevis ends are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point.
Attaching Hardware: Inch clevis spring pins, cotter pins, safety clips, etc. are available in volume.
Construction: Similar to DIN 71752.
Finish: plated zinc with a yellow dichromate treatment.
Material: low carbon steel.
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
Cost Savings Tip: cost effective designs should always include the entire rod-nut-yoke assembly, as opposed to purchasing these components separately. Specify the use of clevis spring pins to reduce assembly costs.
