Home / Catalog / Turnbuckles / HBT3-2.00

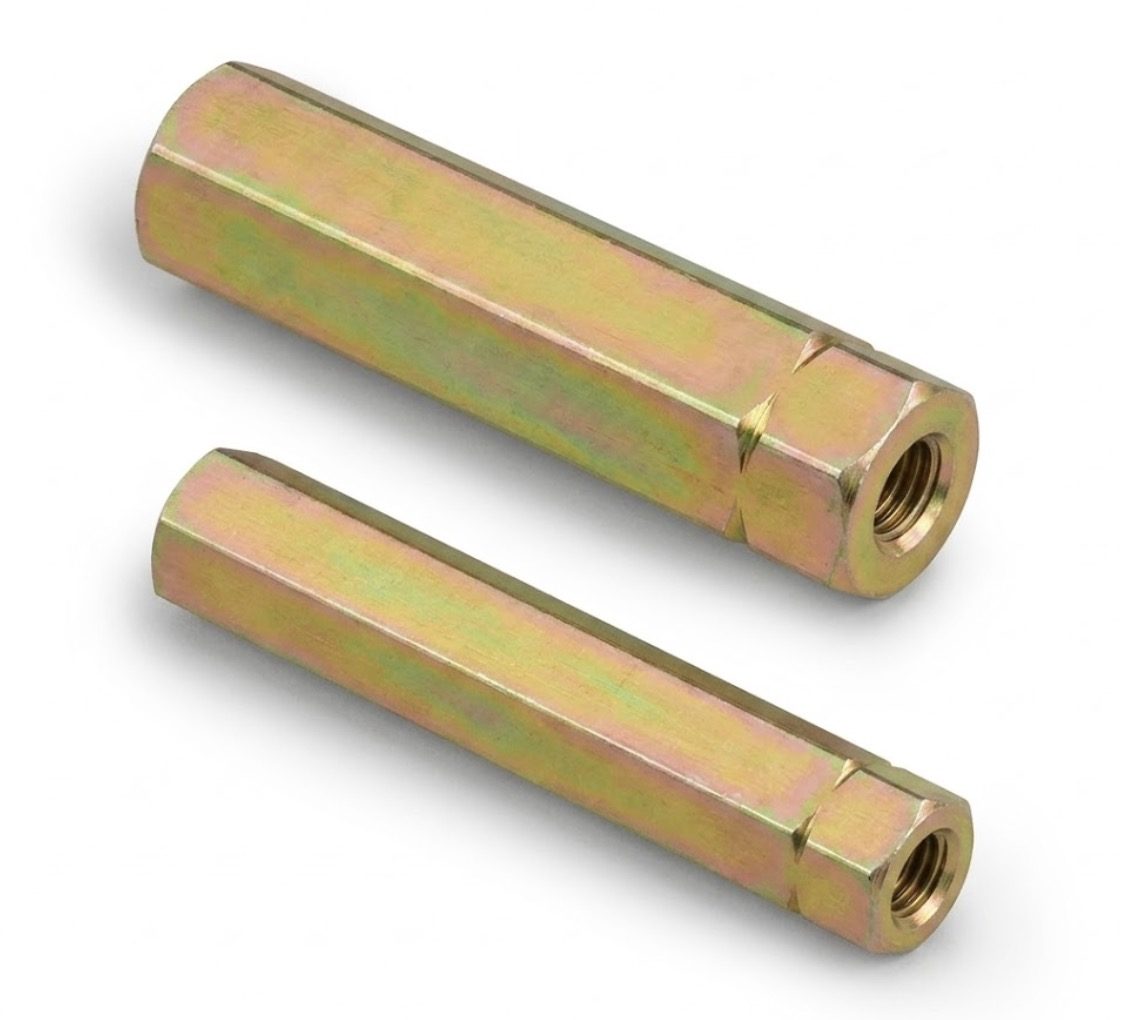

HBT3-2.00 — Turnbuckles photo
HBT3-2.00 dimensional drawing

HBT3-2.00

Turnbuckles · 10-32 LH and RH Threads

10-32 LH and RH Threads 2.00 Overall Length 3.326 to 4.125 overall length range if spherical rod ends added Zinc Yellow Plated Steel Hex Bar Tube

Part numberHBT3-2.00
CategoryTurnbuckles
Type10-32 LH and RH Threads
Threads10-32
MaterialZinc Yellow
Thread Length0.875
Part Length2.00
Sphcl Rod End Assy3.326 to 4.125
Hex Size0.375 Hex
Volume pricing — unit price by quantity
QuantityUnit price
1$22.80
2+$18.56
3+$15.56
4+$13.41
5+$13.16
10+$11.57
25+$7.80
50+$7.70
100+$7.00
250+$5.23
500+$5.22
1,000+$5.13
USD list price. Volume & dealer pricing confirmed on quote.
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Finish: plated zinc with a yellow dichromate treatment. Length Determination: the dimensions above show what center-to-center length can be achieved by the connecting linkage length shown for male spherical rod ends. Material: low carbon steel. Specials: specials are available at any volume. Standards: MCP offers standard connecting tube lengths to provide fast and economical linkage options. Common names for these include turnbuckles, threaded hex bar linkage tubes, threaded adjusters, and coupling nutes.
