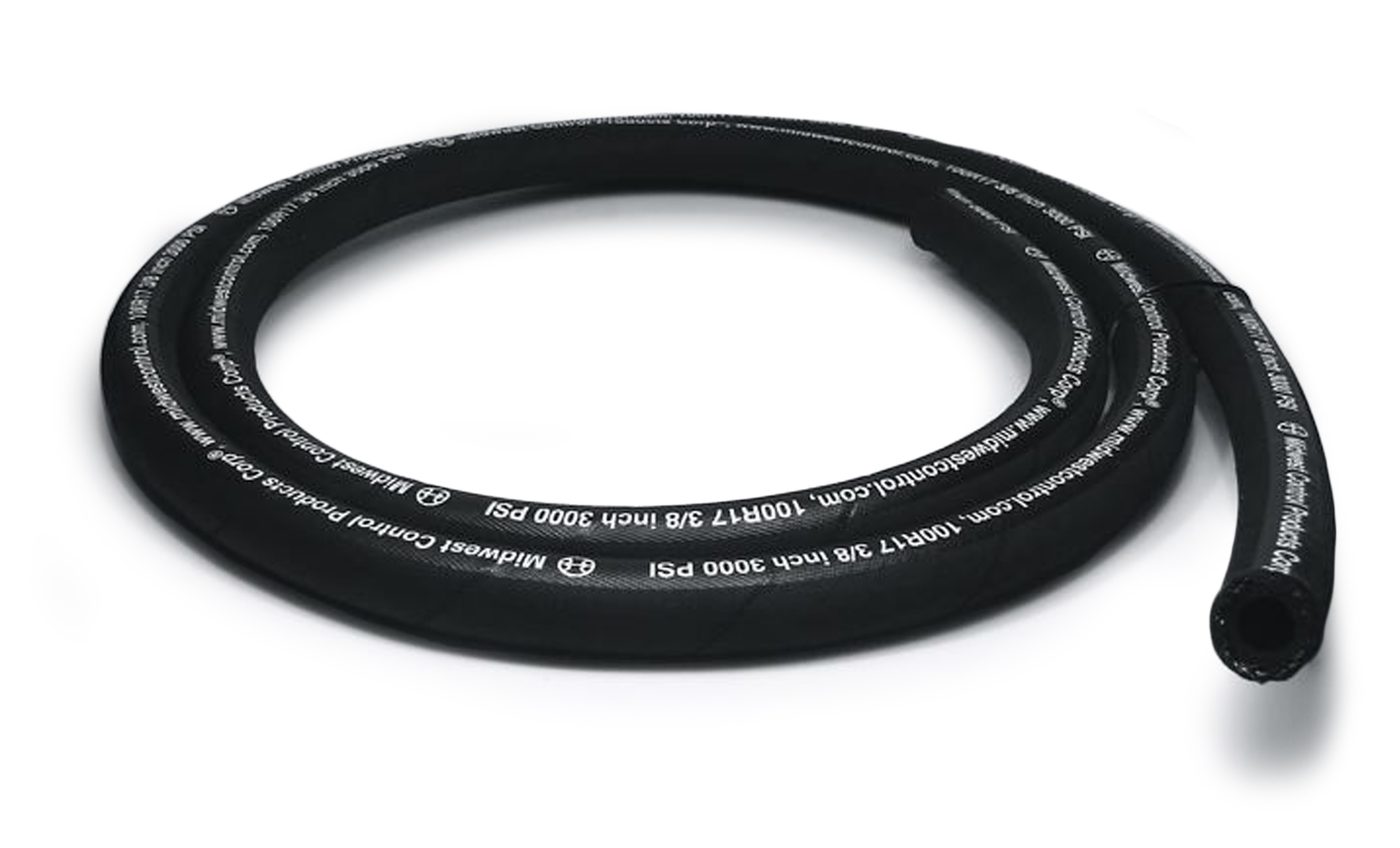

HH-04-R17
Hydraulic Hose · 3000 PSI
3000 PSI 1/4 Price per Foot
| Part number | HH-04-R17 |
| Category | Hydraulic Hose |
| Type | 3000 PSI |
| Hose ID | 1/4 |
| Hose OD | 0.47 |
| Max Pressure psi | 3000 |
| Max Burst Pressure psi | 12000 |
| Min Bend Radius (in) | 2.0 |
| # of Layer of Braids | 1 |
Volume pricing — unit price by quantity
| Quantity | Unit price |
|---|---|
| 100+ | $0.33 |
| 250+ | $0.23 |
| 500+ | $0.21 |
| 1,000+ | $0.15 |
| 2,500+ | $0.13 |
| 5,000+ | $0.12 |
| 7,500+ | $0.10 |
USD list price. Volume & dealer pricing confirmed on quote.
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Product overview
Pricing is PER FOOT. Hose Construction: oil resistant rubber. Reinforcement: one high tensile steel wire braid on the 1/4, 3/8 and 1/2” sizes, and two high tensile steel wire braids on the 5/8, 3/4 and 1.0” sizes. Design: meets or exceeds requirements of SAE 100R17 Temperature Range: -40° F to +250° FMore in Hydraulic Hose
