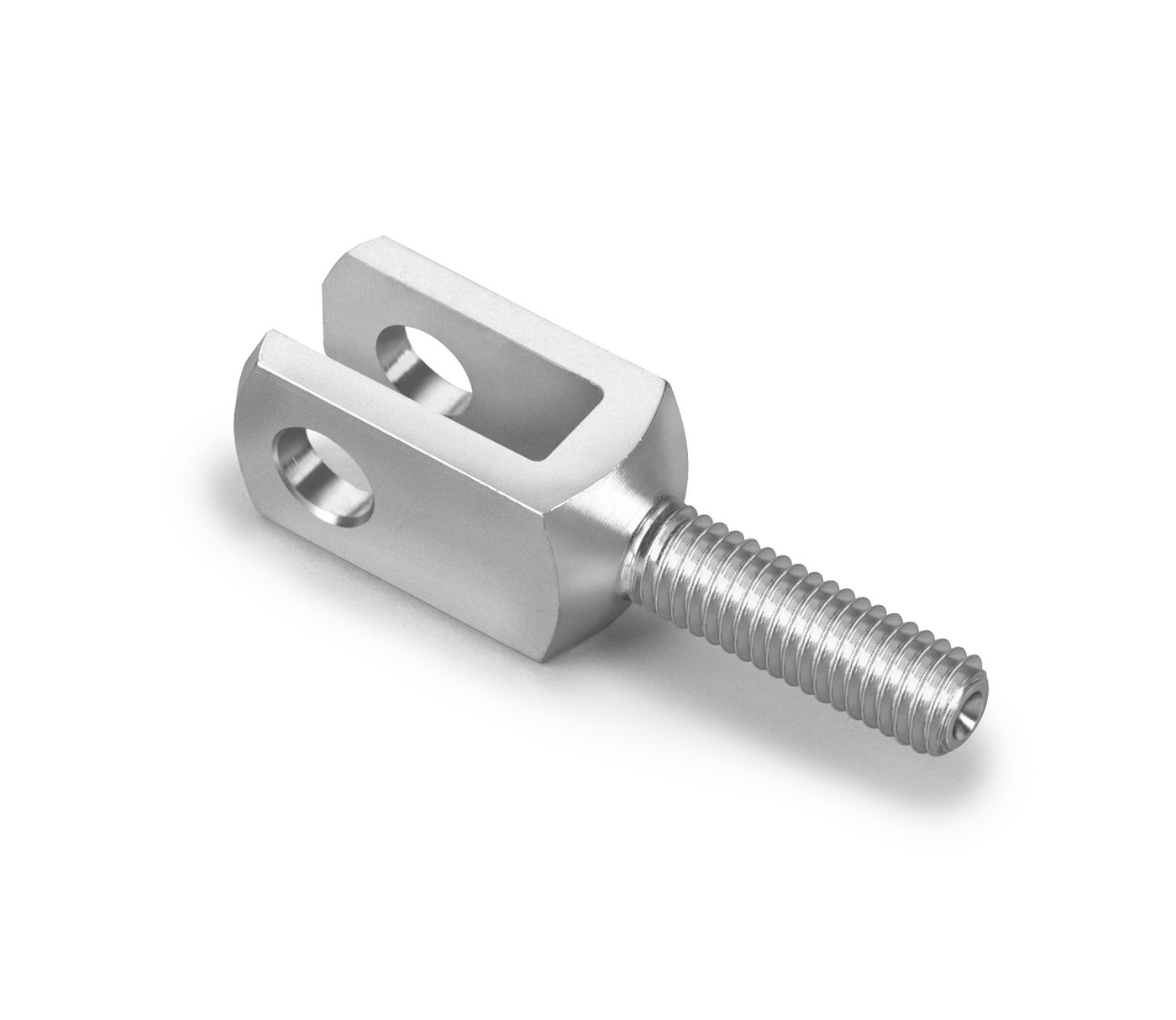

MMC-10 — Clevis and Yoke Ends photo

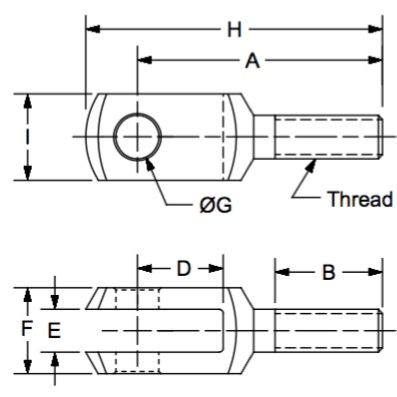

MMC-10 dimensional drawing

MMC-10

Clevis and Yoke Ends · Male

Male M10 x 1.50 RH 20mm Pin Holes Zinc Clear (Silver) Plating Turned Housing Construction

Part numberMMC-10
CategoryClevis and Yoke Ends
TypeMale
ThreadsM10 x 1.50 RH
PlatingZinc Clear
A57
B30
D20
E10
F20
G10
H69
I20
Volume pricing — unit price by quantity
QuantityUnit price
1$14.45
2+$9.07
3+$8.23
4+$7.18
5+$6.93
10+$4.99
25+$4.29
50+$3.23
100+$2.86
200+$2.67
500+$2.26
700+$1.93
1,000+$1.93
USD list price. Volume & dealer pricing confirmed on quote.
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: metric clevis ends (also called "yoke ends") are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point. Attaching Hardware: Metric clevis spring pins, cotter pins, safety clips, etc. are available. Construction: Per DIN 71752. Cost Savings Tip: cost effective designs should always include the entire tube-nut-yoke assembly, as opposed to purchasing these components separately. Finish: plated zinc with a zinc clear dichromate treatment. Material: low carbon steel.
