TBM-08R-10-3.00-B — Rod Ends, Isolated photo

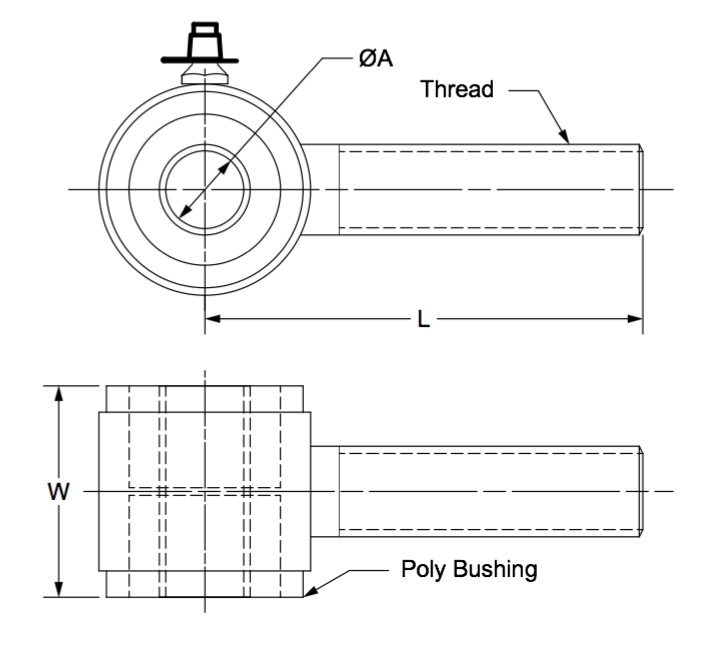

TBM-08R-10-3.00-B dimensional drawing

TBM-08R-10-3.00-B

Rod Ends, Isolated · Male

Male 1/2-20 RH 0.625 Bore 3.00 Width 4.000 Length

Part numberTBM-08R-10-3.00-B
CategoryRod Ends, Isolated
TypeMale
Threads1/2-20 RH
A0.625
L4.000
W3.00
Volume pricing — unit price by quantity
QuantityUnit price
1$49.97
2+$38.35
3+$37.52
4+$28.68
5+$28.43
10+$25.13
25+$22.72
50+$19.81
100+$16.90
250+$16.59
500+$16.58
1,000+$16.58
USD list price. Volume & dealer pricing confirmed on quote.
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Tubular Housing: DOM Seamless ASTM 513 Type 5 Housing. Painted Black finish. Polyurethane Bushings: Two Black polyurethane bushing halves per kit. Metal Insert/Sleeve: Each part includes (1) DOM tubular sleeve (or insert), plated zinc clear (silver), (1) grease zerk, (1) grease zerk cap, and (1) zinc plated grade 2 jam nut. Finish: the grease zerk, tubular bushing and jam nut are all zinc plated. The Bushing Housing is powder painted black. The Housing stud is bare metal.
