TC187 — Clevis and Yoke Ends photo

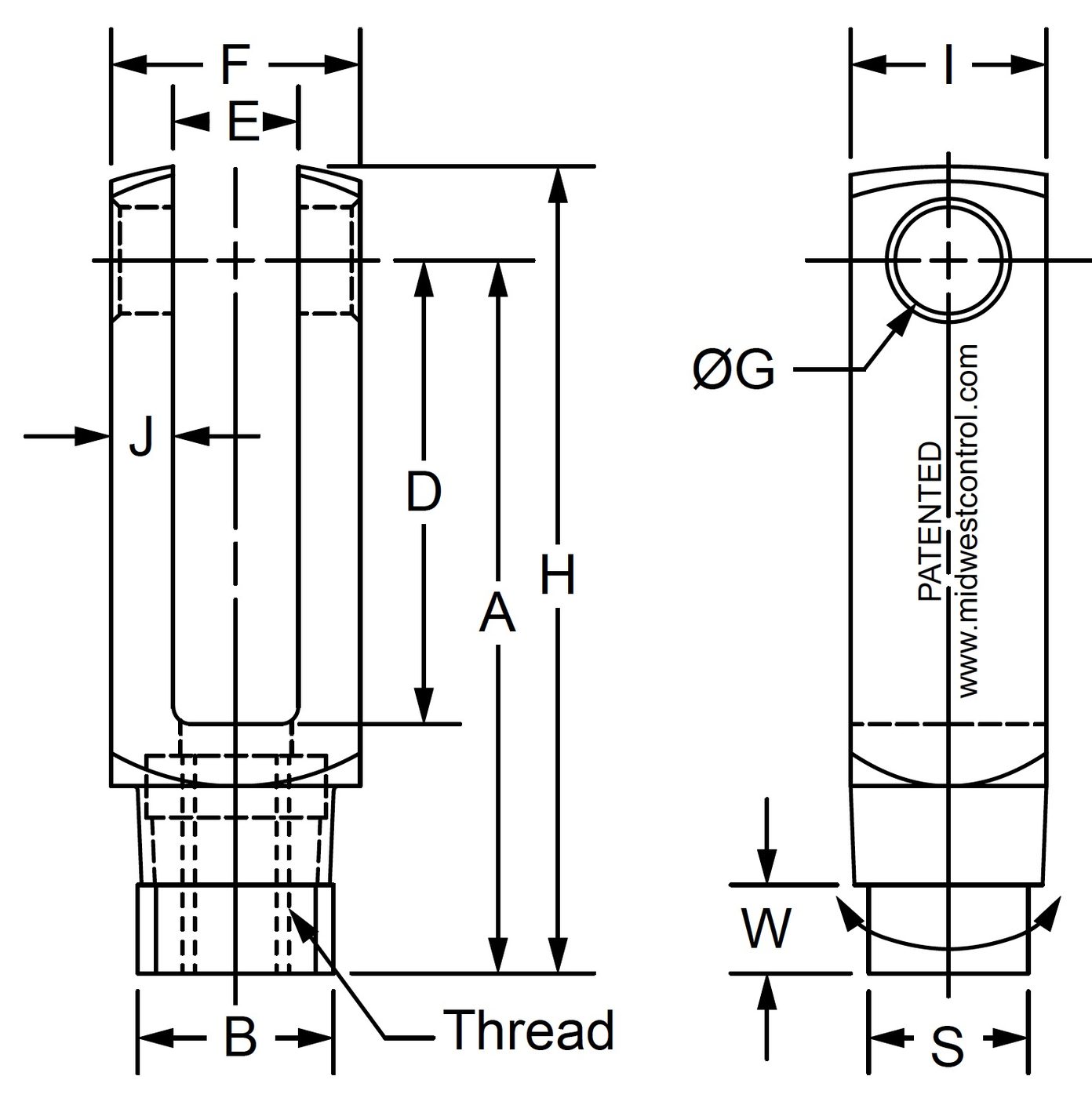

TC187 dimensional drawing

TC187

Clevis and Yoke Ends · Female

Female 10-32 RH 0.188 Pin Holes Patented Barrel eliminates need for LH Threads

Part numberTC187
CategoryClevis and Yoke Ends
TypeFemale
Threads10-32 RH
A1.563
B0.3750
D1.000
E0.188
F0.438
G0.188
H1.77
I0.375
J0.094
S0.312
W0.250
Volume pricing — unit price by quantity
QuantityUnit price
1$9.11
2+$6.61
3+$5.71
4+$4.06
5+$3.81
10+$3.03
25+$2.12
50+$1.85
100+$1.39
200+$1.23
400+$1.14
800+$0.97
1,200+$0.97
USD list price. Volume & dealer pricing confirmed on quote.
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Patented Design: Our Turnbuckle Clevis features a special PATENTED TURNBUCKLE feature that allows the yoke assembly to be adjusted after installation without disconnecting the entire linkage assembly, and eliminates the need for left hand threads. Typical applications include linkage rods and/or push-pull cable linkages where it's advantageous to be able to micro adjust the overall length of the linkage assembly WITHOUT having to remove the clevis pin or clevis spring pin to do so. In other words, using a turnbuckle clevis in your rod or push-pull cable linkage assembly makes after installation adjustment much easier. Material: Low carbon steel. Plating: Zinc Yellow Dichromate finish Video: https://www.youtube.com/watch?v=U793tfUOUOs
