TS-8-9-7.125°

Product overview

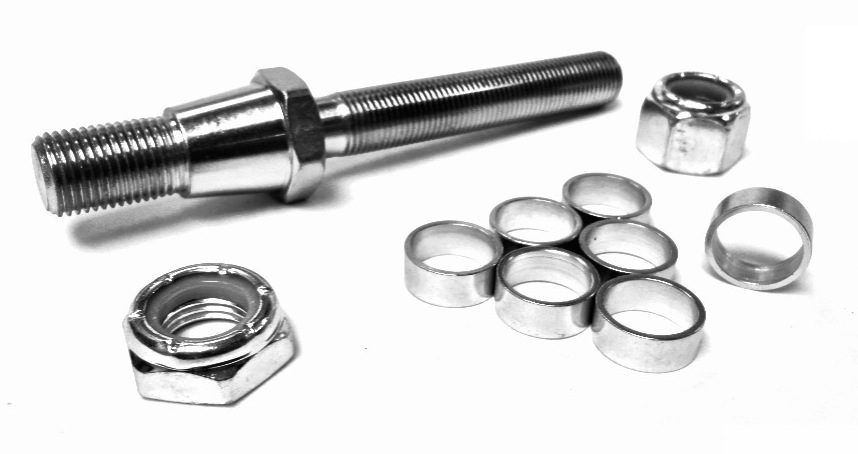

Kit: This kit includes the tapered stud for do-it-yourself (field installable) rod end stud installation, spacers, and two lock nuts. Materials: the nuts and spacers are zinc plated. The tapered stud is grade 8 material, hard chrome plated. Typical Application: Automotive aftermarket bump steer heim joint kits Note... • 'B' dimension is the wrench flat thickness • 'D' dimension is the long stem length (dim 'E') from below the wrench flat 'head', but does not include a short dimension of transition between the wrench flat head and the beginning of the long 'E' threads. • 'G' dimension is the width across the wrench flat's 'flats'.
